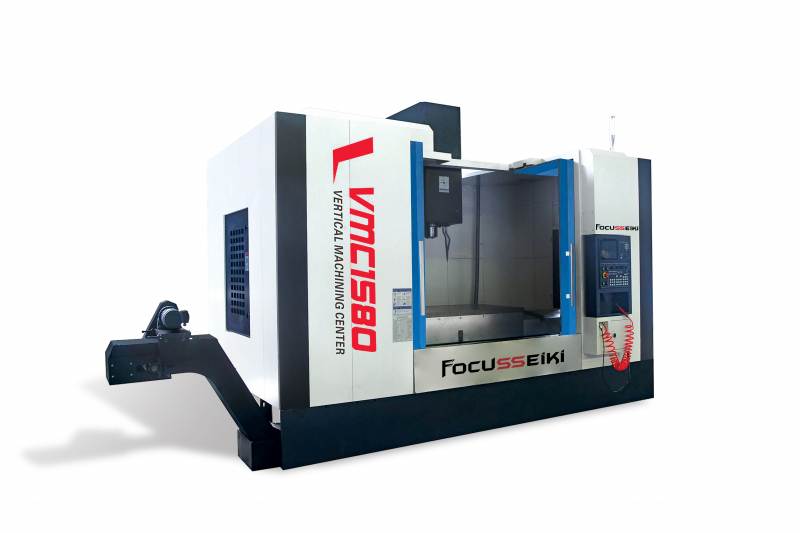

Product Description
| Item | Unit | VMC1270 | VMC1370 | VMC1580 | VMC1890 | ||||
| Capacity | |||||||||
| X axis travel | mm | 1200 | 1300 | 1500 | 1800 | ||||
| Y axis travel | mm | 700 | 700 | 800 | 900 | ||||
| Z axis travel | mm | 700 | 700 | 700 | 800 | ||||
| Spindle nose to worktable | mm | 150-800 | 110-810 | 155-855 | 150-950 | ||||
| Spindle center to column | mm | 710 | 750 | 855 | 965 | ||||
| Leadscrew and guideway size | |||||||||
| Leadscrew diameter X,Y,Z | mm | Φ45 | Φ50 | Φ55 | |||||
| Linear guideway width X,Y,Z | mm | 45/45/45 | 55/55/55 | 55/55/55 | |||||
| Worktable size | |||||||||
| Worktable Length | mm | 1300 | 1400 | 1600 | 2000 | ||||
| Worktable width | mm | 700 | 700 | 800 | 900 | ||||
| Max loading capacity | kg | 1000 | 1000 | 1500 | 2000 | ||||
| Spindle | |||||||||
| Spindle taper | 10000-12000 | 10000-12000 | 10000-12000 | 10000-12000 | |||||
| Spindle speed | rpm | Kas.15 | Kas.15 | Kas.15 | Kas.15 | ||||
| Main motor power | kw | BT40 | BT40 | BT50 | BT50（Φ190） | ||||
| Feeding system | |||||||||
| Fast moving speed (X/Y/Z) | m/min | 24/24/24 | 24/24/24 | 24/24/24 | 24/24/24 | ||||
| Cutting speed | mm/min | 1-10000 | 1-10000 | 1-10000 | 1-10000 | ||||
| Feed motor power | N/M | 3 *3 *4.5 | 3 *3 *4.5 | 3 *3 *4.5 | 3.5 *3.5 * 4.5 | ||||
| Tool Magazine | |||||||||
| Capacity | pcs | Arm 24 | Arm 24 | Arm 24 | Arm 24 | ||||
| Max tool diameter | mm | 120 | 120 | ||||||
| Max tool weight | kg | 8 | 8 | ||||||
| Max tool length | mm | 300 | 300 | ||||||
| Accuracy | |||||||||
| Positioning accuracy | mm | 0.008 | 0.008 | 0.012 | 0.012 | ||||
| Repeat accuracy | mm | 0.005 | 0.005 | 0.008 | 0.008 | ||||
| Machine dimensions | |||||||||
| Length | mm | 3450 | 3800 | 4300 | 5100 | ||||
| Width | mm | 2500 | 2560 | 3400 | 3800 | ||||
| Height | mm | 2950 | 3200 | 3300 | 3500 | ||||
| Weight | kg | 7800 | 11000 | 15500 | 18000 | ||||
